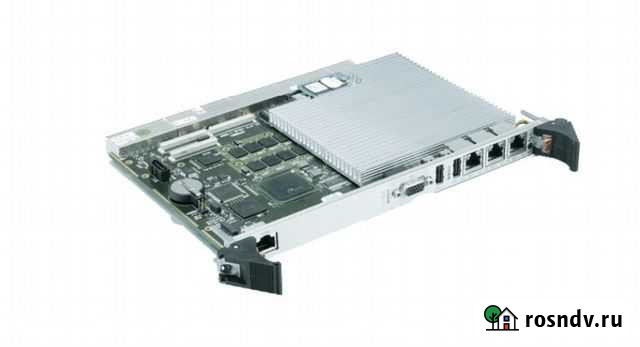

Промышленный Компьютер 6U Kontron cp6001 31.272-10

Продам Промышленный компьютер формфактора 6U CPCI Kontron cp6001 R3 31.272-1010 (v.1022-8827 rev 13). Новый, распаковывался только для проверки. ------------------------- Intel Core 2 Duo L7400 1.5 GHz , 4 gb DDR2 SDRAM Onboard ,3-1000BASET(RJ45),SVGA, 2-USB, COM (RJ45) ,SATA,USB-NAND, etc Порты(по даташиту): Serial ports: two COM ports (transceivers onboard) - COM1 as RS232 COM1 on front and rear I/O - COM2 as RS422 on the rear I/O interface - USB NAND Flash: One USB port of the ICH7R is routed to a dedicated onboard connector, where USB-NAND-Flash modules can be connected - SATA: Four Serial ATA II ports - Two ports are routed to rear I/O - Two are selectable between rear I/O or onboard usage: - One onboard SATA interface routed to a standard SATA connector - One available as 2.5” onboard HDD (mutually exclusive with PMC) - PMC: one 32-bit / 66 MHz PCI PMC slot with rear I/O support, 5 V and 3.3 V PCI signalling supported Передняя панель : ETHERNET VGA COM USB PMC LEDs Reset Micro Switch 3x 1000/100/10 Base Ethernet on RJ45 1x 15-Pin D-Sub connector for standard analog displays 1x RS232 UART interface on RJ45 connector 2x 4-pin connectors opening for PMC front panel (R1 only) 2x LAN activity (yellow) and speed (green), one blue control LED for hot swap, 2x for IPMI, 1x watchdog, 1x thermal control, 4-LEDfield for BIOS POST code or general purpose reset button, guarded for hot swap (Note: CP6001-R3- conduction cooled- with reduced front I/O) Физ.харктеристики: - Размеры: 233 x 160 x 20.5 mm, 6U, 4HP - Вес: R1: 622 g; R2: 740 g; R3: 698 g - Наработка на отказ(MBTF): 180,332 h acc. to MIL-HDBK 217FN2, Ground Benign GB controlled at 30°C - CP6001-R3 214881 h acc. to MIL-HDBK-217 FN2 Ground Benign 30° C Состояние: новое.
